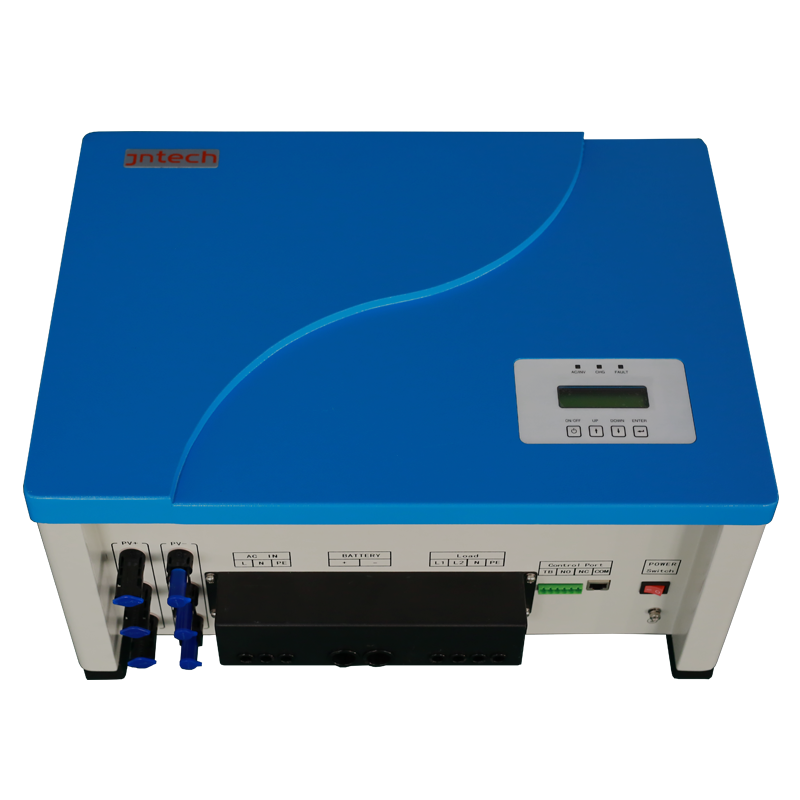

1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition

    Buy cheap 1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition from wholesalers

    Buy cheap 1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition from wholesalers
    • Buy cheap 1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition from wholesalers
    • Buy cheap 1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition from wholesalers
    • Buy cheap 1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition from wholesalers

    1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition

    Ask Lasest Price
    Brand Name : JNTECH
    Model Number : JNF1KLF
    Supply Ability : 1000 Set/Sets per Month
    Price : $275.00
    • Product Details
    • Company Profile

    1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition

    Product Introduction

    Solar Off-grid Inverter with Hybrid Controller

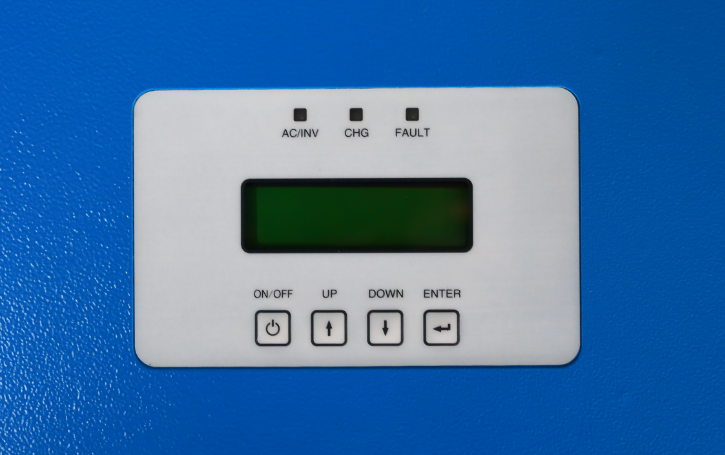

    Combing functions of inverter, AC charger, solar MPPT charge controller and AC by-pass to offer uninterrupted power support with portable size. The comprehensive LCD display offers user-configurable and easy accessible button operation.

    System Features
    1KVA JNTECH Dc Ac Hybrid Solar Inverter / Off Grid Hybrid Solar Inverter For Air Condition

    Safety:
    1. Overload and short circuit protection;
    2. Auto restart while AC is recovering;
    3. Compatible to mains voltage or generator power.
    Smart:
    1. Perfect pure sine wave output;
    2. Selectable charging current;
    3. Configurable AC/DC input priority via LCD setting.
    Reliable:
    1. Built-in pure copper transformer;
    2. Silicon-controlled rectifier be adoped in AC by-pass;
    3. Provide power supply to load for 24 hours.
    Intelligent:
    1. Advanced battery management system (BMS);
    2. Support sealed battery and lithium battery;
    3. Special AC output design, adopt emergency & heavy loads separate control.

    Technical Parameters
    Model
    JNF1KLF/24V-V2
    Max. PV array input voltage
    150Vdc
    Recommended PV array power
    1500W
    MPPT voltage range
    35~145Vdc
    Battery rated voltage
    24Vdc
    Battery rated charge current
    40A
    Battery charge efficiency
    ≥96%
    Rated output capacity
    1KVA
    Rated output power
    800W
    Output voltage
    230Vac (±5%)
    Rated frequency
    50/60Hz (±3%)
    Standby loss
    ≤10W
    Max. efficiency
    90%~93%
    Total harmonic distortion (THD)
    <3%
    Rated current
    4.5A
    Current peak factor
    3:1
    Overload
    125%@rated power, 70s; 150%@rated power, 30s; 200%@rated power, 5s; 300%@rate power, 10ms
    AC input charge voltage
    160~270Vac
    AC input frequency
    50/60Hz (±3%)
    Max. charge current
    20A
    Grid by-pass switching time
    <3%
    Dimension
    485mm*365mm*235mm
    Weight
    17kg
    Protection level
    IP21
    Audible noice
    <60dB
    Cooling method
    Force cooling
    Operate temperature
    -20~+50℃
    Storage temperature
    -20~+70℃
    Status indicator
    LCD+LED
    Interface
    RS485 (optional)
    Elevation
    2000m (>2000m need derating operate)
